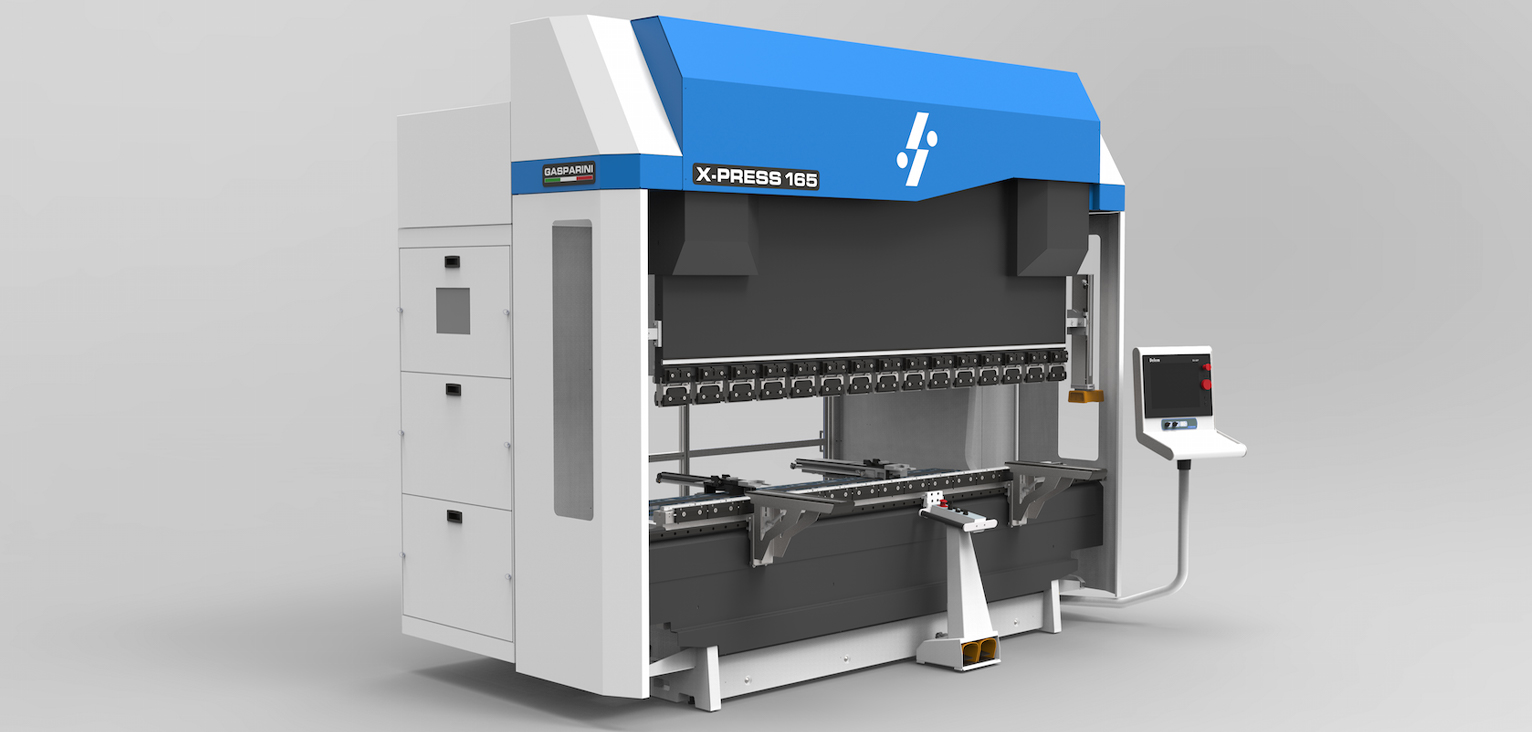

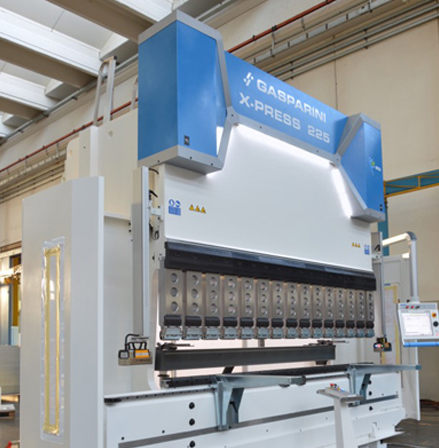

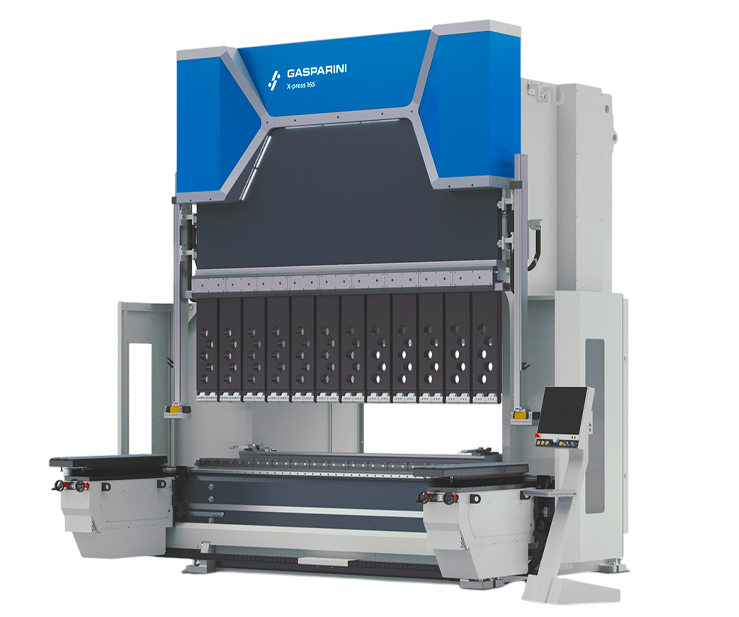

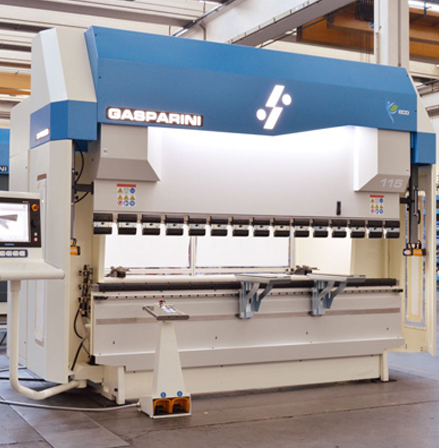

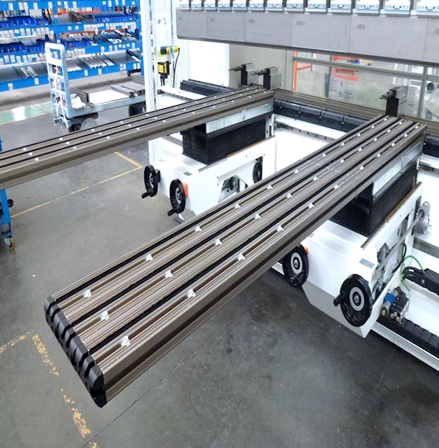

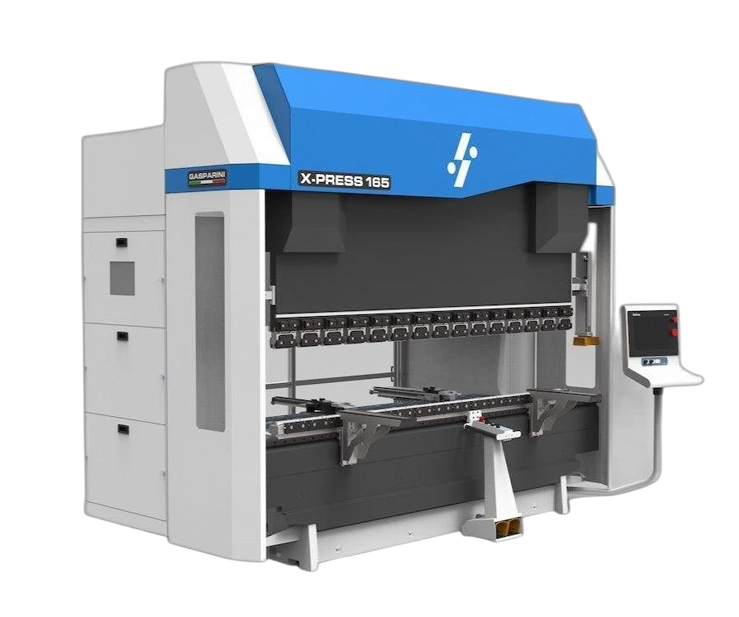

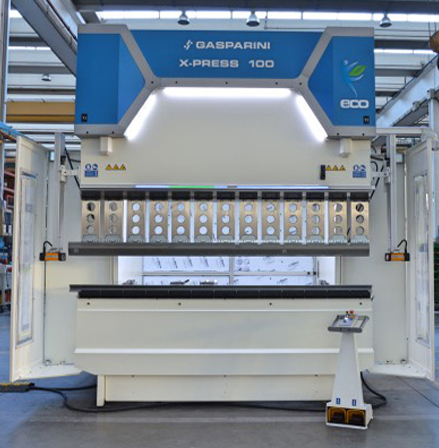

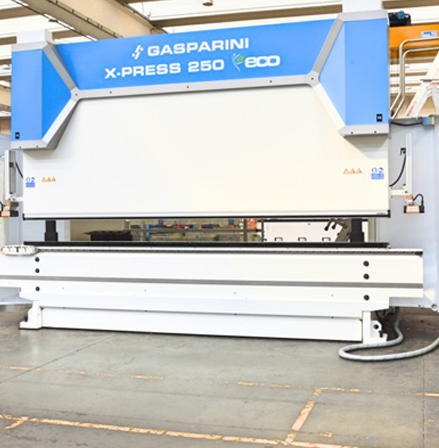

X-Press hydraulic press brake renovates its structure, its accessories and its design. Its structure is welded and normalized to guarantee maximum stability, and is now equipped with a new backgauge.
X-Press is now available in three trims: Easy, Next, and SuperCustom.These three configurations may be customised according to the final product, manufacturing flexibility, and ease of tool change.

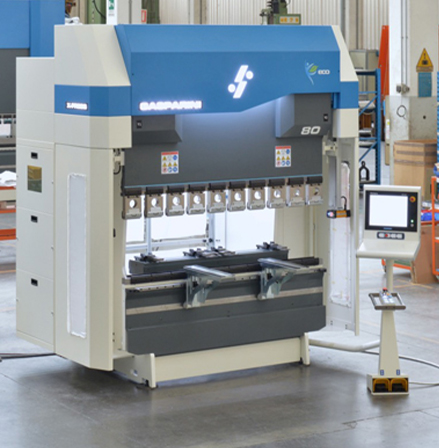

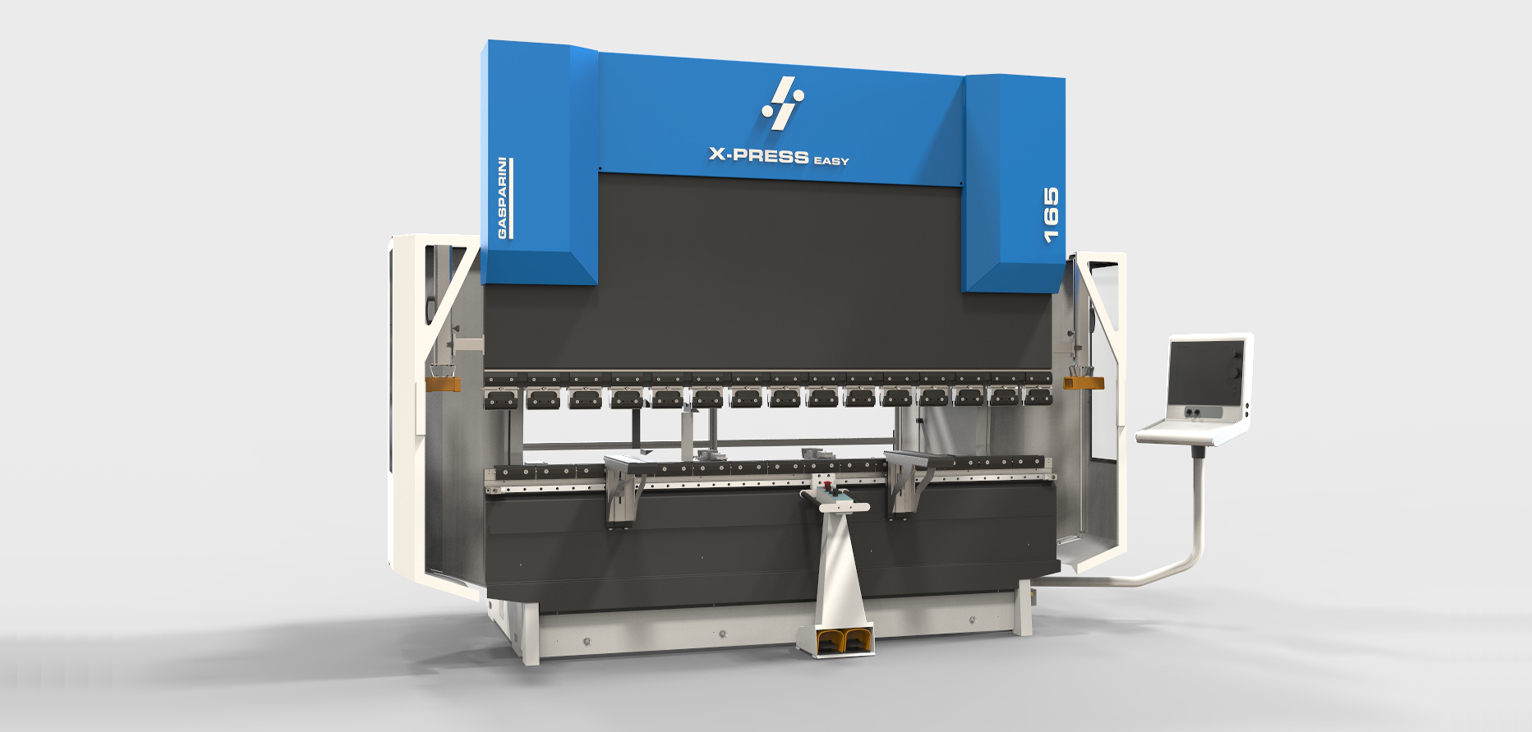

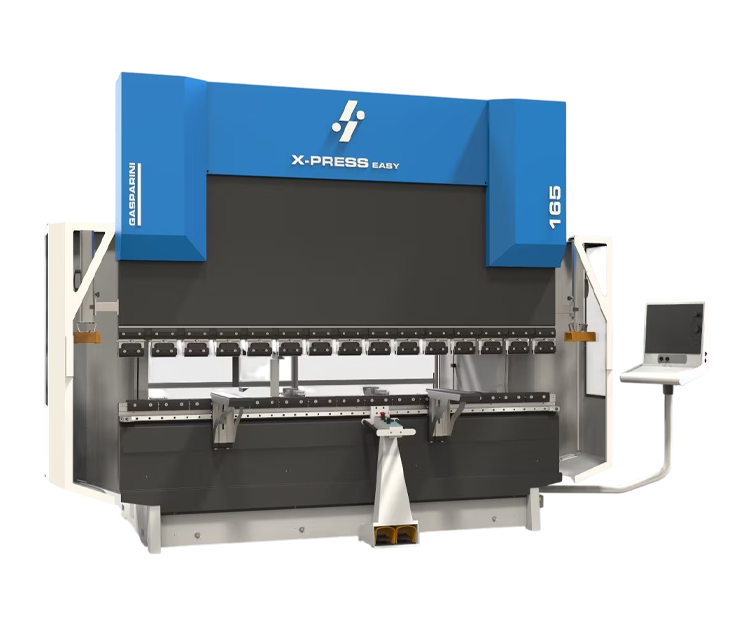

Simple and Solid press brake
Entirely produced in Italy with high-quality components.
Work area can be customized and all types of tool clamping can be installed.

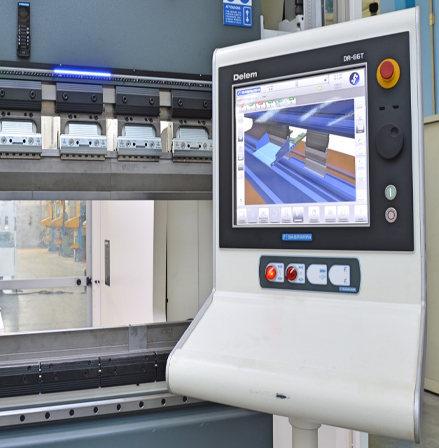

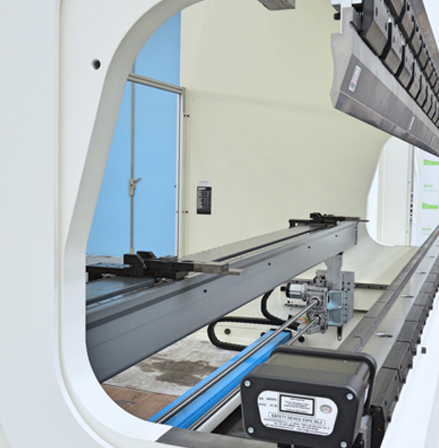

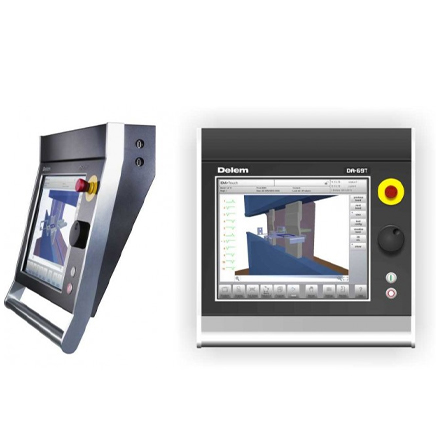

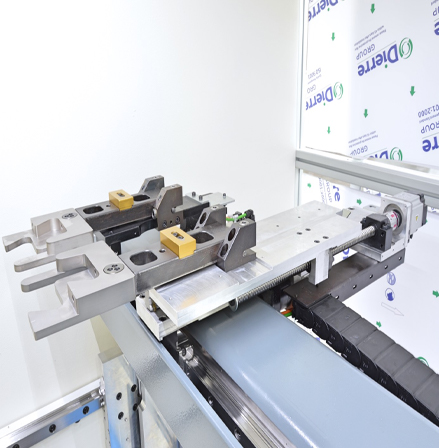

2-axes backgauge and Delem DA-58T CNC
A top-notch press brake, with the most powerful CNCs.
Open height, stroke, and throat can be customized.
It can be equipped with real-time Adaptive Crowning system and a wide choice of accessories.
The perfect machine for those who want to increase efficiency of their manufacturing and perform even the most complex fabrication processes.
X-Press Next press brake is compliant with Industry 4.0 guidelines.
A one-off press brake.
SuperCustom is completely made to measure in open height, stroke, throat, and tool adapters height.

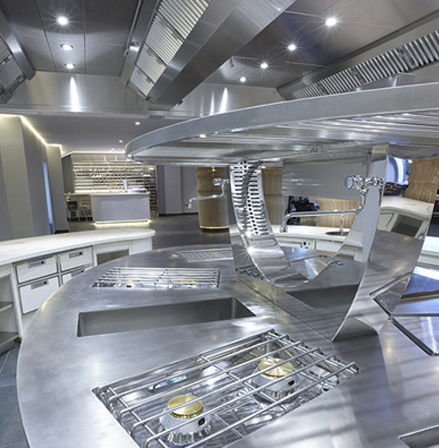

A bespoke suit that perfectly fits your product, especially if you make deep boxes, tanks and large sinks.

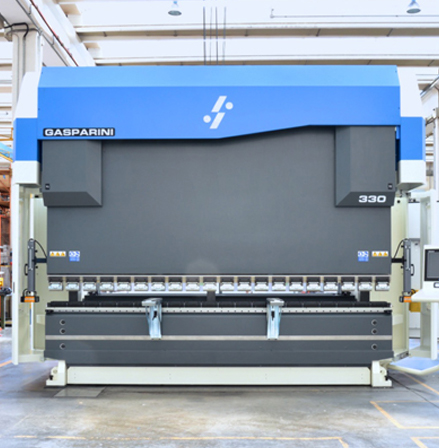

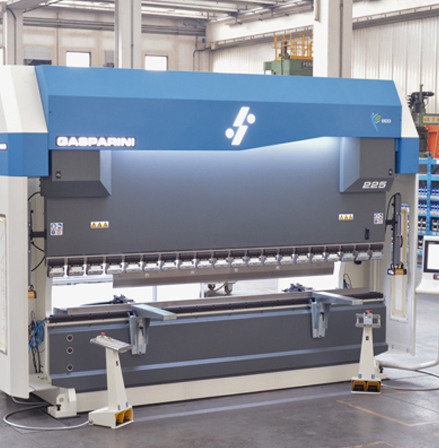

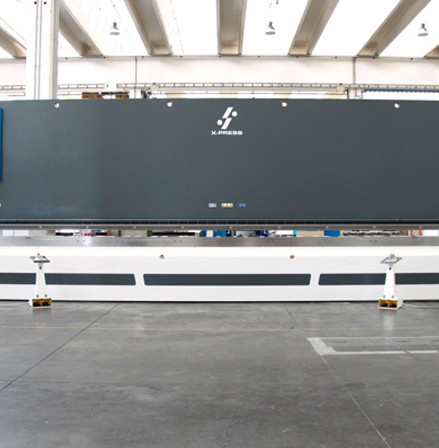

The X-Press press brakes can be produced in any bending force and with any length.

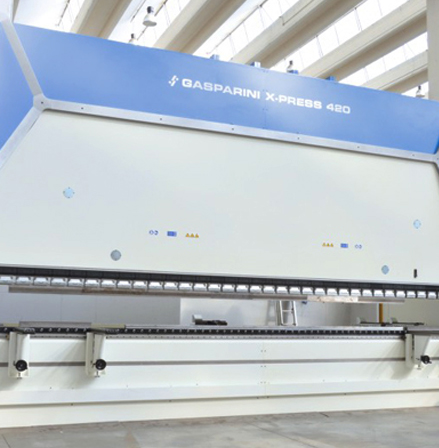

Our productive structure in Istrana (Treviso, Italy) allows us to make even exceptionally powerful and big machines.

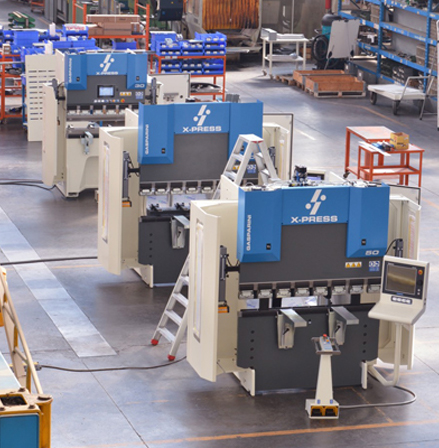

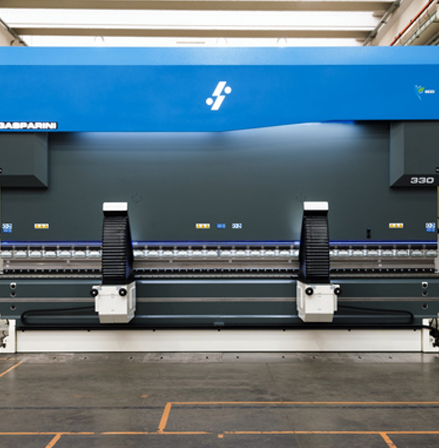

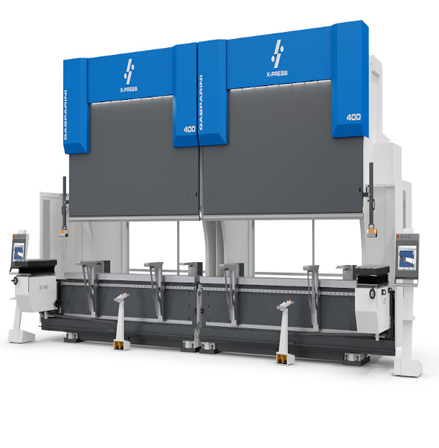

Press brakes can be configured as stand-alone, or in tandem/tridem/quadrem and integrated in a robotic cell or automated line.
Our machines have been certified as compliant to Industry 4.0 guidelines by the Polo Tecnologico di Pordenone (Pordenone Technology Hub).
| Standard equipment | Easy | Next | SuperCustom |
|---|---|---|---|
| Throat | Standard/increased | Standard/increased | bespoke |
| Height of bench from the floor | Standard/increased | Standard/increased | bespoke |
| Y stroke | Standard/increased | Standard/increased | bespoke |
| Y axis stroke | Standard/increased | Standard/increased | bespoke |

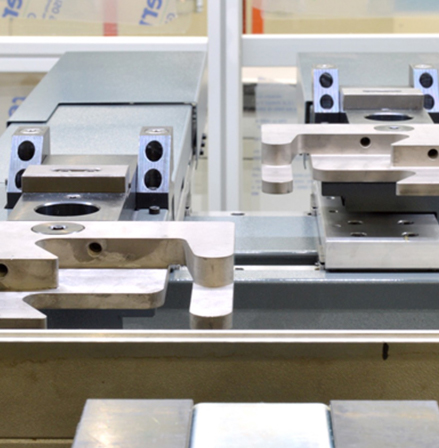

| Backgauge | 2 axes X-R | 2 to 8 axes X-R-Z1-Z2-X5-X6 | 2 to 8 axes X-R-Z1-Z2-X5-X6 |

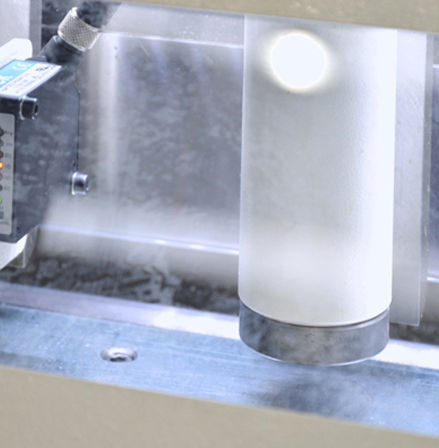

| Sensorized backstops | not available | optional | optional |
| Additional backstops | optional, manual only | optional | optional |
| Retractable supports | optional | optional | optional |
| Safety | DSP-AP | DSP-AP | DSP-AP |
| CNC | Delem DA-58T | Delem DA-66T, DA-69T, Phoeni-x, Gasparini | bespoke |
| Crowning | Automatic, wedge crowning | Gasparini Adaptive (>50 t) or automatic (<50 t); optional Gasparini Adaptive Plus (with Eco+) or wedge crowning |
bespoke |
| Energy saving | optional Stand-by, Eco Easy | optional Stand-by, Eco, Eco+ | optional Stand-by, Eco, Eco+ |

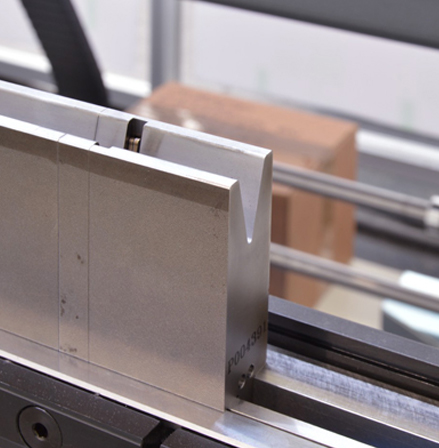

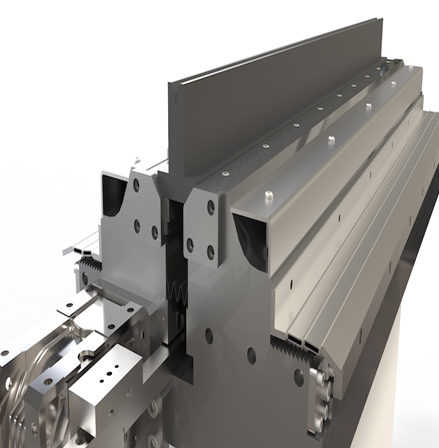

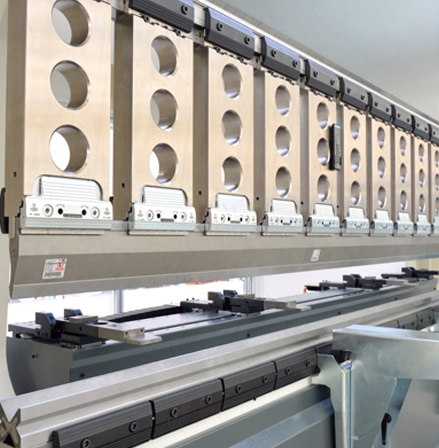

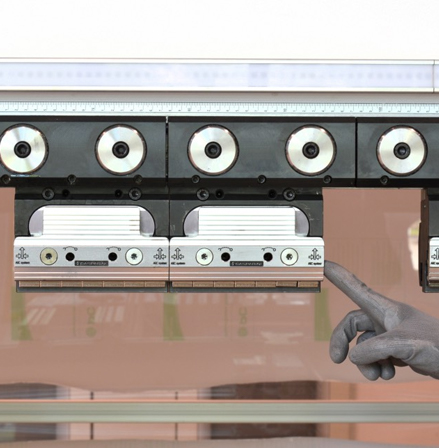

| Clamping | manual Promecam; optional pneumatic/hydraulic Promecam/Wila | manual Promecam; optional pneumatic/hydraulic Promecam/Wila | manual Promecam; optional pneumatic/hydraulic Promecam/Wila |
| Bench | 60/90 mm self-centering | 60/90 mm self-centering | 60/90 mm self-centering |

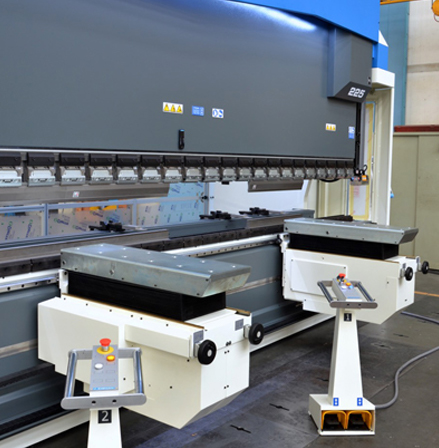

| Front supports | Standard | Standard, optional sliding or bending aids | Standard, optional sliding or bending aids |
| Illuminazione | LED non-dimmable | LED dimmable | bespoke |

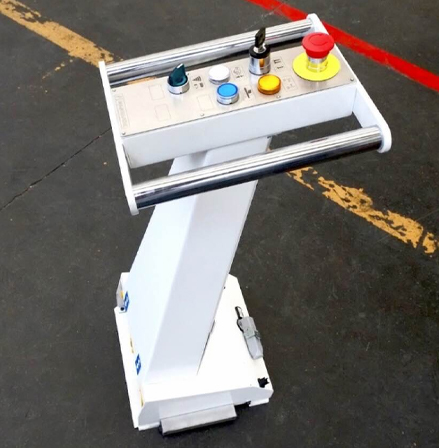

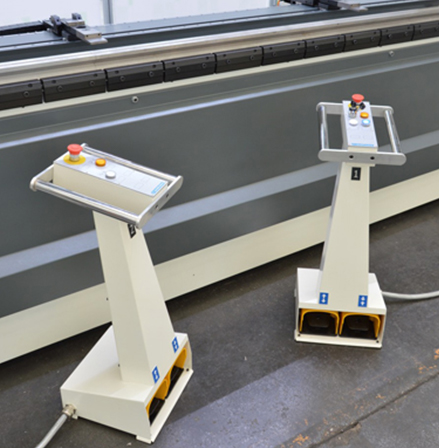

| Pedaliera | Standard | Standard | Standard |
